MLZ-KX EZ FIT®



Ceiling-recessed Indoor Unit

M-Series Residential Indoor model

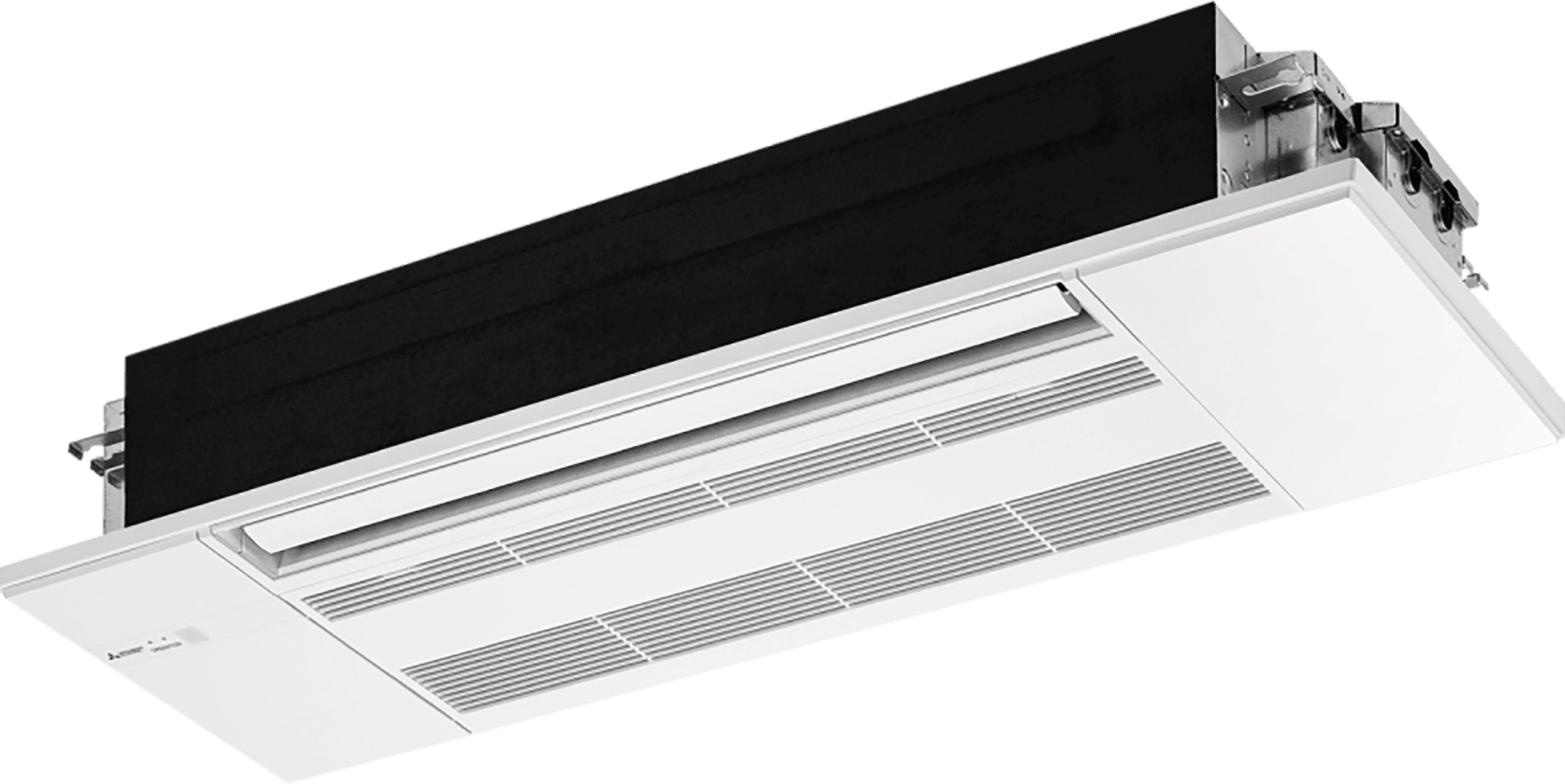

The EZ FIT® ceiling-recessed indoor unit is designed to fit between standard ceiling joists, providing a clean, flush-mount appearance that is attractive to homeowners accustomed to the sight of conventional vents. High/low ceiling airflow settings and automatic vane control provide personalized room comfort, and the ability to fully service the unit from the bottom simplifies the maintenance process.

MLZ-KX EZ FIT® Ceiling-recessed Indoor Unit

Features


Econo Cool

Temporarily adjusts airflow to maintain comfort while using less energy.

Swing Mode

An indoor unit with this capability can move air throughout the room like an oscillating fan.

Specifications


Black check mark on a white background.

Series: M-Series

Black check mark.

Type:  Ceiling-mounted

Black check mark on a white background.

Model:  MLZ-KX

Black check mark on white background.

Capacity range:  6,000 to 18,000 BTU/H

Black check mark on a white background.

Sound level:  As low as 27 dB(A)

Black checkmark on a white background.

SEER2:  Up to 20.9

Black check mark.

HSPF2:  Up to 9.7

Black check mark on white background.

Refrigerant:  R454B

Dimensions


The MLZ-KX model has 2 size variations across 4 unit options.

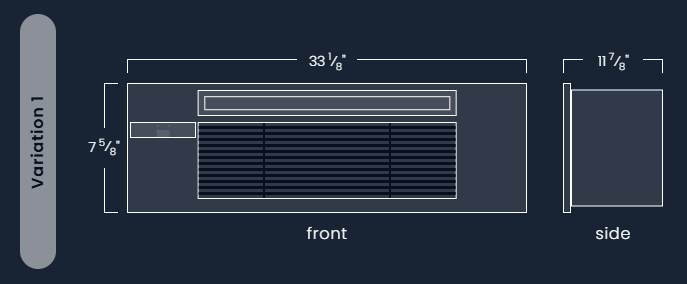

Diagram of a rectangular object showing front and side views with dimensions in inches.

1 unit with these dimensions:

  • MLZ-KX06NL (6000k BTU/H)

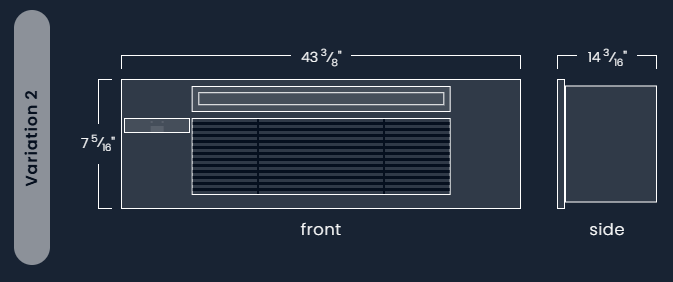

Diagram showing the front and side views of a rectangular object. Dimensions are provided in inches.

3 units with these dimensions:

  • MLZ-KX09NL (9000k BTU/H)
  • MLZ-KX12NL (12000k BTU/H)
  • MLZ-KX18NL (18000k BTU/H)
