PLA-NL

Four-way Ceiling Cassette

P-Series Indoor model (residential and light commercial)

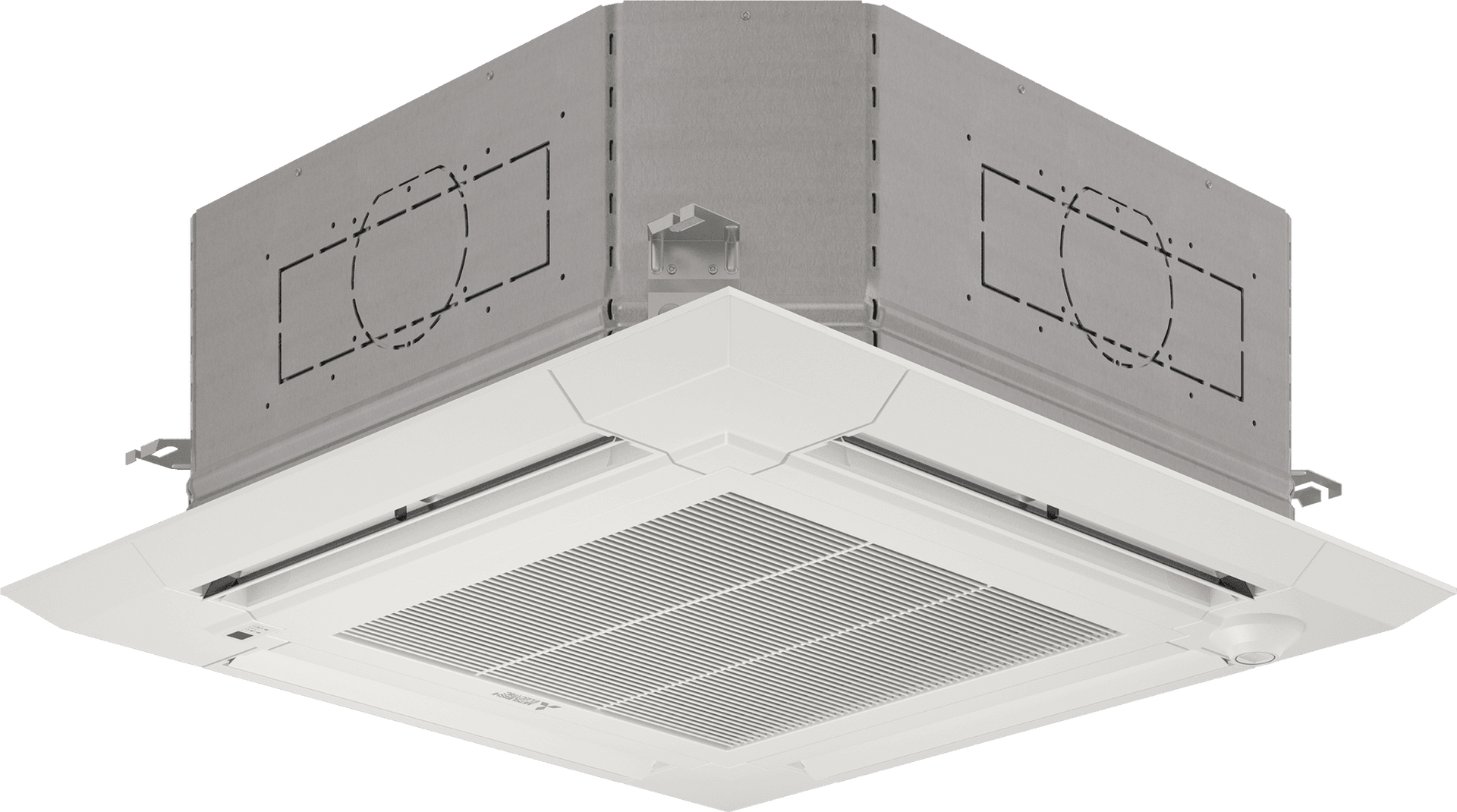

The PLA four-way ceiling-recessed indoor unit can be easily installed into a 3’ x 3’ suspended ceiling grid, where it is mounted flush with the ceiling. Four multidirectional vanes can be customized to provide 72 unique airflow patterns to accommodate many different room layouts. The PLA includes a built-in refrigerant leak sensor when connected to a MXZ-SM system. Not compatible in a one-to-one system.

PLA-NL Four-way Ceiling Cassette

Features

3D i-see Sensor

This advanced sensor scans the room for occupancy, then adjusts temperature and airflow based on user preferences, and saves energy when a room is empty.

Swing Mode

An indoor unit with this capability can move air throughout the room like an oscillating fan.

Specifications

Black check mark on a white background.

Series:  P-Series

Black checkmark on white background.

Type: Ceiling-mounted

Black checkmark on a white background.

Model: PLA-NL

Black check mark on a white background.

Capacity range: 12,000 to 48,000 BTU/H

Black check mark on a white background.

Sound level: As low as 26 dB(A)

Black check mark on a white background.

SEER2: Up to 24.8

Black check mark.

HSPF2: Up to 10.9

Black check mark on white background.

Refrigerant:  R454B

Dimensions

The PLA-NL model has 2 size variations across 7 unit options.

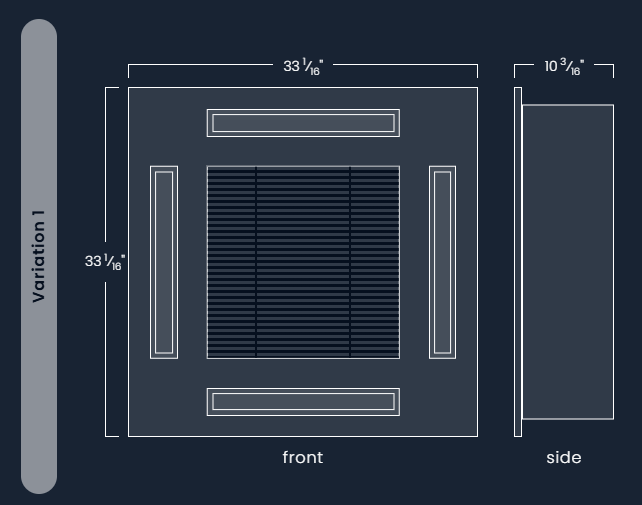

Diagram of a square structure with front and side views, featuring a central rectangular area with horizontal lines.

2 units with these dimensions:

  • PLA-AE12NL (12000k BTU/H)
  • PLA-AE18NL (18000k BTU/H)

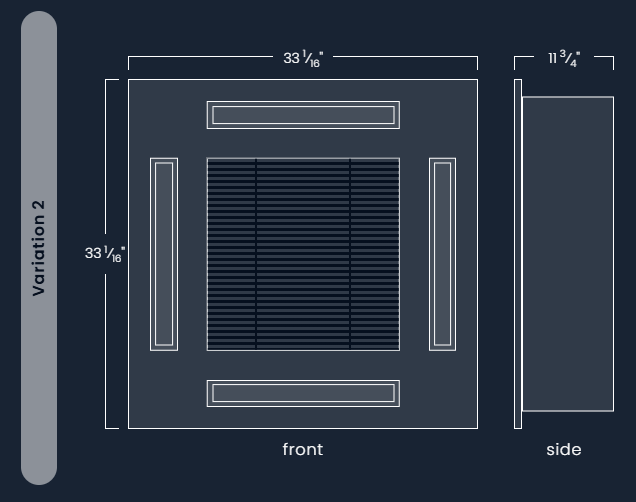

Diagram of

5 units with these dimensions:

  • PLA-AE24NL (24000k BTU/H)
  • PLA-AE30NL (30000k BTU/H)
  • PLA-AE36NL (36000k BTU/H)
  • PLA-AE42NL (42000k BTU/H)
  • PLA-AE48NL (48000k BTU/H)
