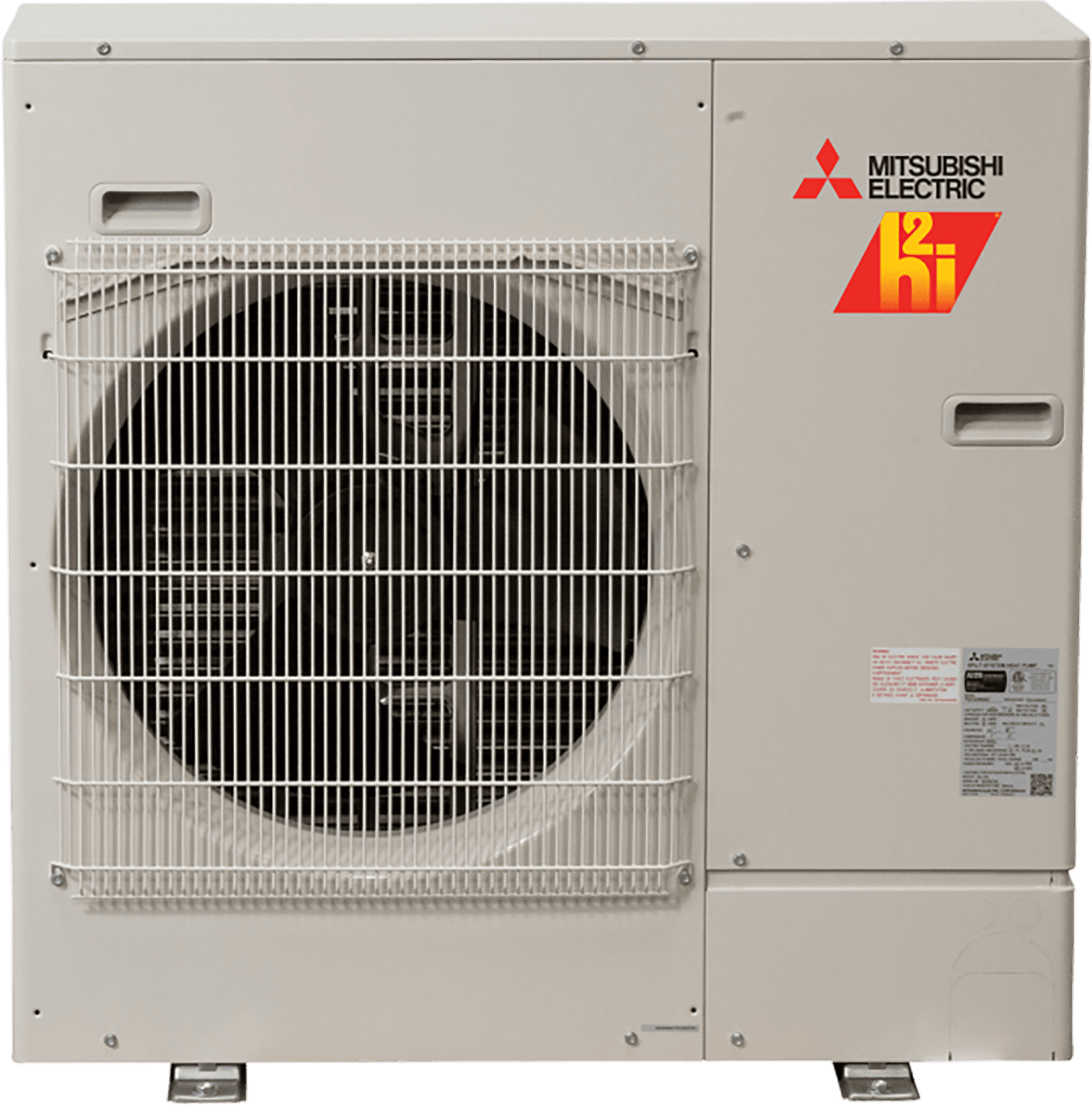

SUZ-NLHZ

Single-zone Universal Hyper-Heat Pump

M-Series Residential Outdoor model

The SUZ hyper-heating universal outdoor unit is compatible with seven different ducted and ductless indoor units in a single-zone configuration. With piping lengths up to 100 feet, this unit is a great fit for large home and multi-family applications. Hyper-heating INVERTER® models provide heating even in ambient outdoor temperatures as low as -13° F, producing up to 100% heating capacity at 5° F. These units offer year-round comfort even in extreme climates.

SUZ-NLHZ Single-zone Universal Hyper-heat Pump

Features

Single-zone

One outdoor unit connects to one indoor unit to control the comfort in a single space.

H2i

100% heating performance down to 5° F with guaranteed heating down to -13° F.

Specifications

Black check mark on white background.

Series: M-Series

Black check mark on white background.

Type: Heat pump

Black check mark.

Model: SUZ-NLHZ

Black check mark on white background.

Capacity range: 9,000 to 48,000 BTU/H

Black check mark on a white background.

Sound level: As low as 52 dB(A)

Black checkmark on a white background.

SEER2: Up to 19.5

Black check mark.

HSPF2: Up to 9.9

Black check mark on white background.

Refrigerant:  R454B

Dimensions

The SUZ-NLHZ model has 2 size variations across 8 unit options.

V

a

r

i

a

t

i

o

n

1

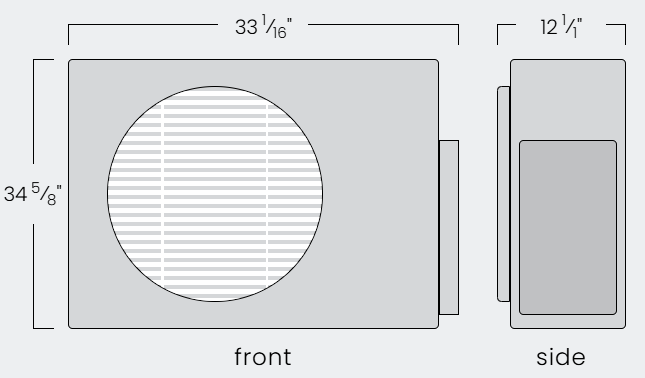

Variation 1

4 units with these dimensions:

  • SUZ-AA09NLHZ (9000k BTU/H)
  • SUZ-AA12NLHZ (12000k BTU/H)
  • SUZ-AA15NLHZ (15000k BTU/H)
  • SUZ-AA18NLHZ (18000k BTU/H)

V

a

r

i

a

t

i

o

n

2

Variation 2

4 units with these dimensions:

  • SUZ-AK24NLHZ (24000k BTU/H)
  • SUZ-AK30NLHZ (30000k BTU/H)
  • SUZ-AK36NLHZ (36000k BTU/H)
  • SUZ-AK48NLHZ (48000k BTU/H)

Variation 1

V

a

r

i

a

t

i

o

n

 1

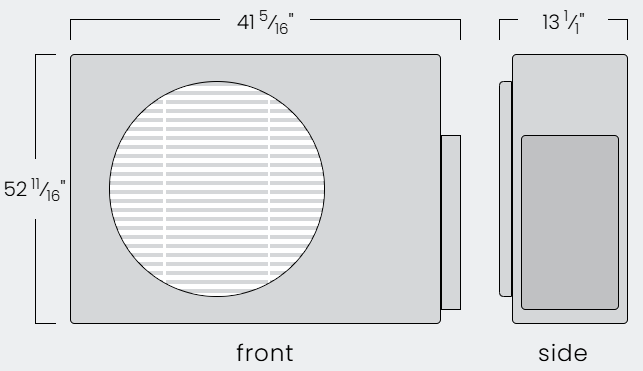

Dimensions:

  • Width: 41 5⁄16"
  • Height: 52 11⁄16"
  • Depth: 13"
