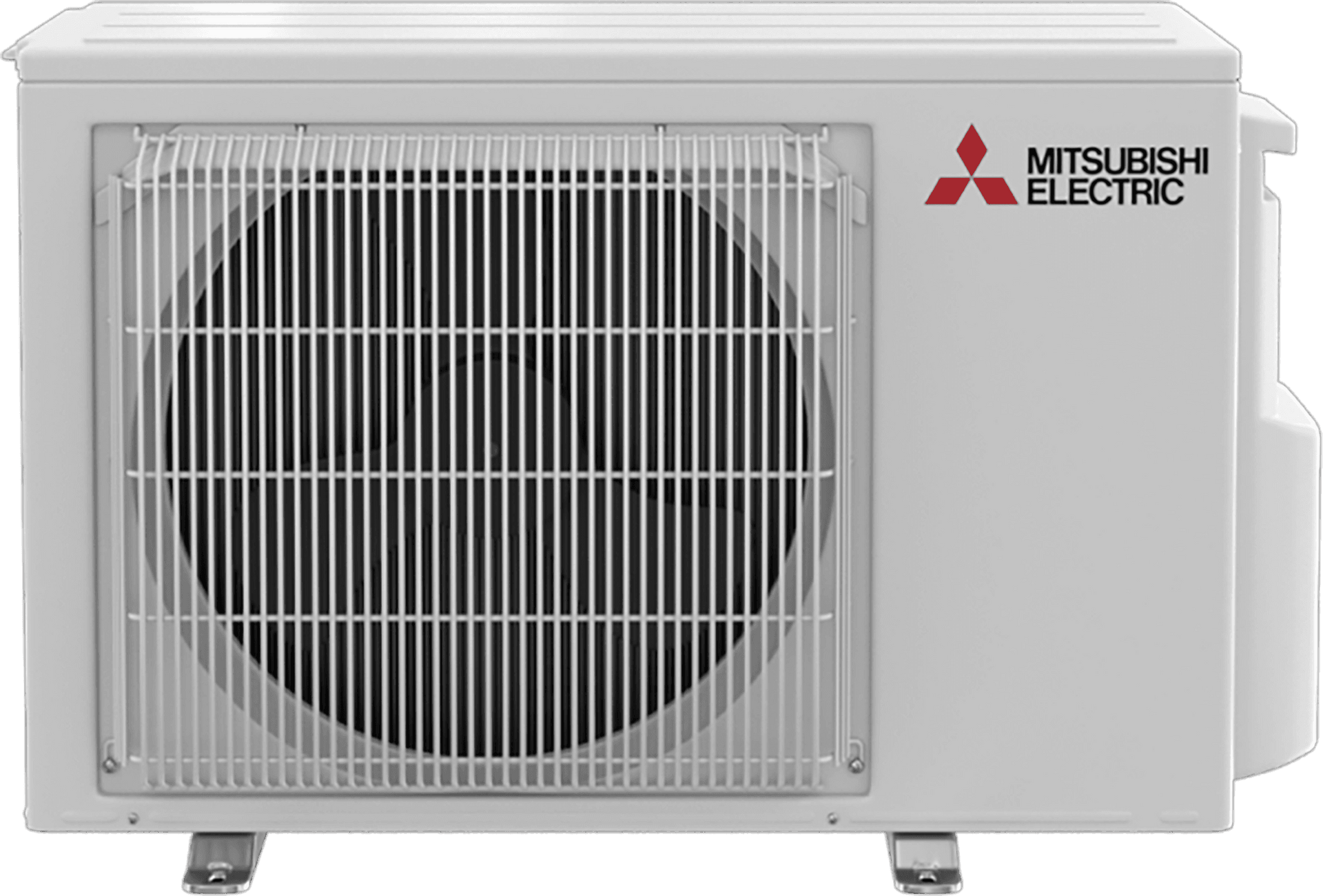

SUZ-NL



Single-zone Universal Heat Pump

M-Series Residential Outdoor model

The SUZ universal outdoor heat pump is compatible with various ductless indoor units in a single-zone configuration. With piping lengths up to 100 feet, this unit is a great fit for large home and multi-family applications. Standard SUZ heat pumps have a minimum heating operation range of -4° F and a heating cut-out at -14° F.

SUZ-NL Single-zone Universal Heat Pump

Features


Single-zone

One outdoor unit connects to one indoor unit to control the comfort in a single space.

Specifications


Black check mark on white background.

Series: M-Series

Black check mark on white background.

Type: Heat pump

Black check mark.

Model: SUZ-NL

Black check mark on white background.

Capacity range: 9,000 to 60,000 BTU/H

Black check mark on a white background.

Sound level: As low as 48 dB(A)

Black checkmark on a white background.

SEER2: Up to 21.7

Black check mark.

HSPF2: Up to 12.9

Black check mark on white background.

Refrigerant:  R454B

Dimensions


The SUZ-NL model has 3 size variations across 9 unit options.

V

a

r

i

a

t

i

o

n

1

Variation 1

3 units with these dimensions:

  • SUZ-AA09NL (9000k BTU/H)
  • SUZ-AA12NL (12000k BTU/H)
  • SUZ-AA15NL (15000k BTU/H)

V

a

r

i

a

t

i

o

n

 2

Variation 2

4 units with these dimensions:

  • SUZ-AA18NL (18000k BTU/H)
  • SUZ-AA24NL (24000k BTU/H)
  • SUZ-AA36NL (36000k BTU/H)
  • SUZ-AA30NL (30000k BTU/H)

V

a

r

i

a

t

i

o

n

 3

Variation 3

2 units with these dimensions:

  • SUZ-AK48NL (48000k BTU/H)
  • SUZ-AK60NL (60000k BTU/H)

Dimensions


The SUZ-NL model has 3 size variations across 9 unit options.

V

a

r

i

a

t

i

o

n

 1

Variation 1

Dimensions:

  • Width: 31 1⁄4"
  • Height: 21 1⁄2"
  • Depth: 11"

1 Unit with these dimensions:

  • SUZ-KA15NA2.MX (15000k BTU/H)

V

a

r

i

a

t

i

o

n

 2

Variation 2

Dimensions:

  • Width: 31 5⁄16"
  • Height: 21 9⁄16"
  • Depth: 11"

1 Unit with these dimensions:

  • SUZ-KA12NA2.MX (12000k BTU/H)

V

a

r

i

a

t

i

o

n

 3

Variation 3

Dimensions:

  • Width: 31 1⁄2"
  • Height: 34 5⁄8"
  • Depth: 13"

1 Unit with these dimensions:

  • SUZ-KA09NAHZ.TH (9000k BTU/H)

V

a

r

i

a

t

i

o

n

 4

Variation 4

Dimensions:

  • Width: 33 1⁄16"
  • Height: 21 5⁄8"
  • Depth: 11"

1 Unit with these dimensions:

  • SUZ-KA15NA2.MX (15000k BTU/H)

V

a

r

i

a

t

i

o

n

 5

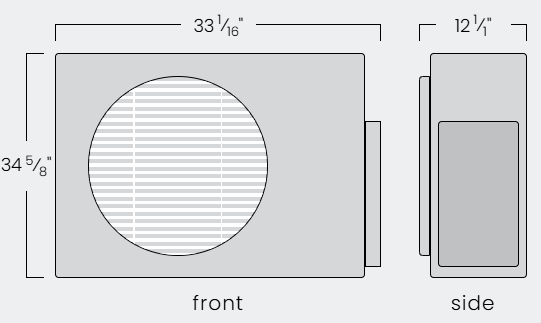

Variation 5

Dimensions:

  • Width: 33 1⁄16"
  • Height: 34 5⁄8"
  • Depth: 13"

1 Unit with these dimensions:

  • SUZ-KA12NAHZ.TH (12000k BTU/H)
  • SUZ-KA15NAHZ.TH (15000k BTU/H)
  • SUZ-KA18NA2.TH (18000k BTU/H)
  • SUZ-KA18NAHZ.TH (18000k BTU/H)
  • SUZ-KA24NA2.TH (24000k BTU/H)
  • SUZ-KA30NA2.TH (30000k BTU/H)
  • SUZ-KA36NA2.TH (36000k BTU/H)

V

a

r

i

a

t

i

o

n

 6

Variation 6

Dimensions:

  • Width: 37 7⁄16"
  • Height: 37 1⁄8"
  • Depth: 13"

1 Unit with these dimensions:

  • SUZ-KA24NAHZ (24000k BTU/H)

V

a

r

i

a

t

i

o

n

 7

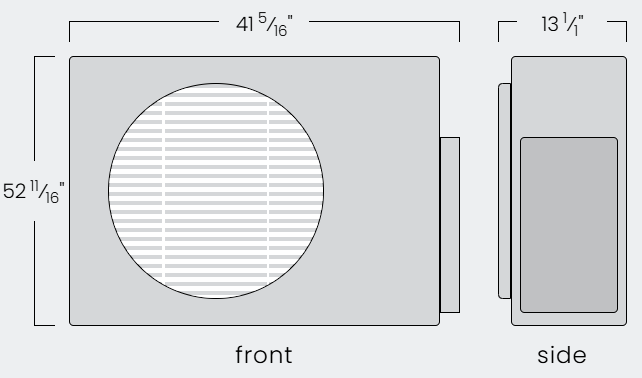

Variation 7

Dimensions:

  • Width: 41 3⁄8"
  • Height: 52 11⁄16"
  • Depth: 63"

2 Units with these dimensions:

  • SUZ-KA30NAHZ (30000k BTU/H)
  • SUZ-KA36NAHZ (36000k BTU/H)
