MSZ-GX

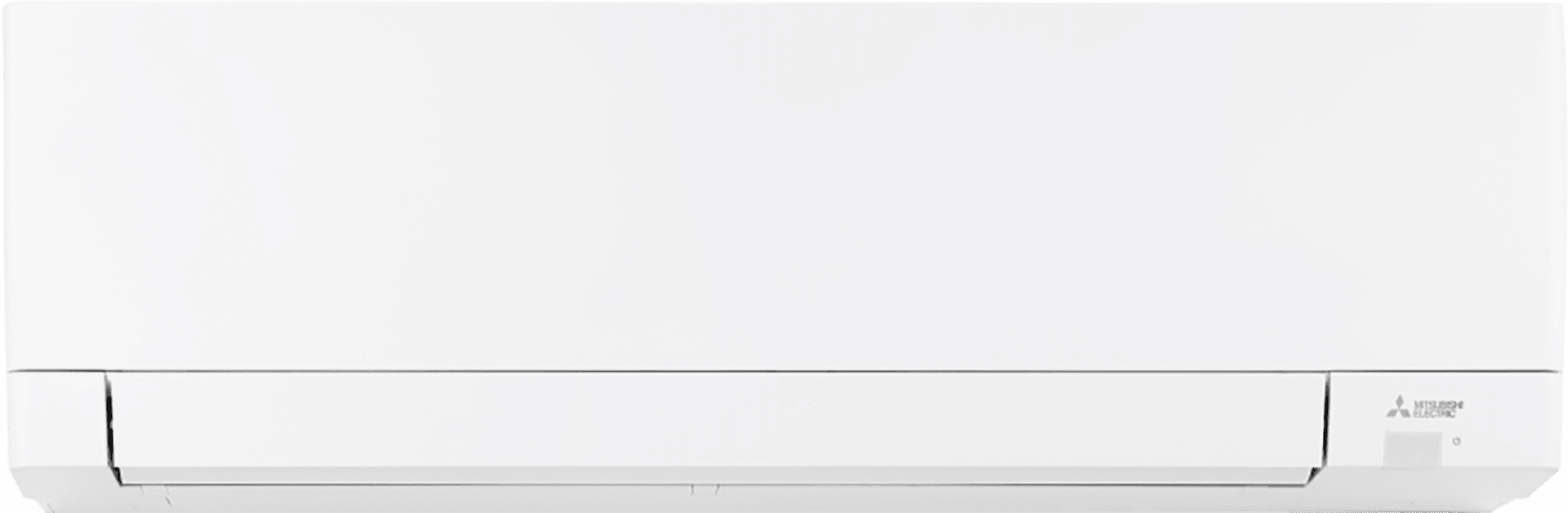

MSZ-GX Wall-mounted Indoor Unit

The GX premier wall-mounted indoor unit combines sleek matte finish design, whisper-quiet performance, and energy-efficient comfort for any home. The unit has built-in Wi-Fi and comes with an array of other advanced features.

MSZ-GX Premier Wall-mounted Indoor Unit

Features

Black rounded square with a snowflake-like design.

Econo Cool

Temporarily adjusts airflow to maintain comfort while using less energy.

Icon of a rectangular shape with a line inside, and curved arrows indicating rotation.

Swing Mode

An indoor unit with this capability can move air throughout the room like an oscillating fan.

Specifications

Black check mark on a white background.

Series: M-Series

Black check mark.

Type: Wall-mounted

Black check mark on a white background.

Model:  MSZ-GX

Black check mark on a white background.

Capacity range:  6,000 to 36,000 BTU/H

Black check mark on a white background.

Sound level:  As low as 19 dB(A)

Black check mark on white background.

SEER2:  Up to 28.4

Black check mark.

HSPF2:  Up to 8.9

Black check mark on white background.

Refrigerant:  R454B

Dimensions

The MSZ-GX model has 2 size variations across 8 unit options.

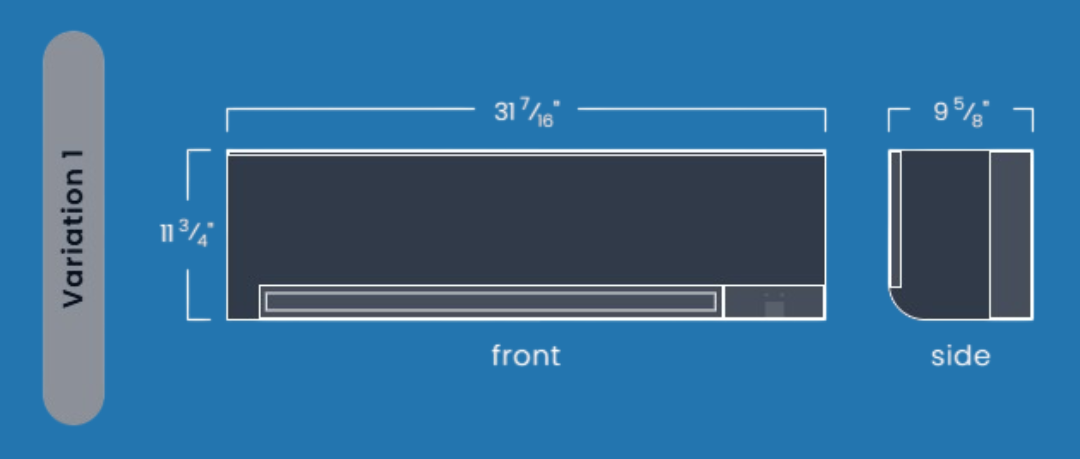

Diagram of a rectangular object showing front and side views with labeled dimensions in inches.

4 units with these dimensions:

  • MSZ-GX06NL (6000k BTU/H)
  • MSZ-GX09NL (9000k BTU/H)
  • MSZ-GX12NL (12000k BTU/H)
  • MSZ-GX15NL (15000k BTU/H)

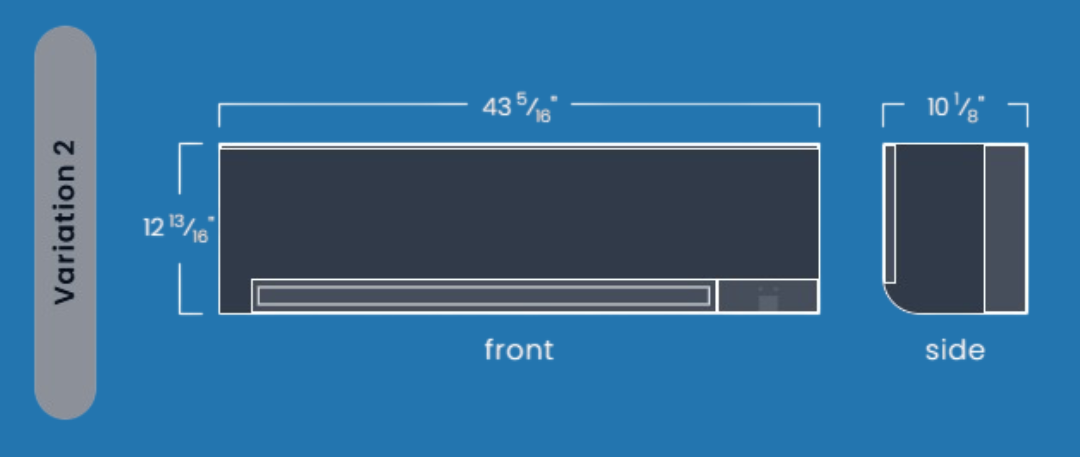

Diagram showing front and side views of an air conditioning unit; dimensions are labeled in inches.

4 units with these dimensions:

  • MSZ-GX18NL (18000k BTU/H)
  • MSZ-GX24NL (24000k BTU/H)
  • MSZ-GX30NL (30000k BTU/H)
  • MSZ-GX36NL (36000k BTU/H)
