MSZ-FX

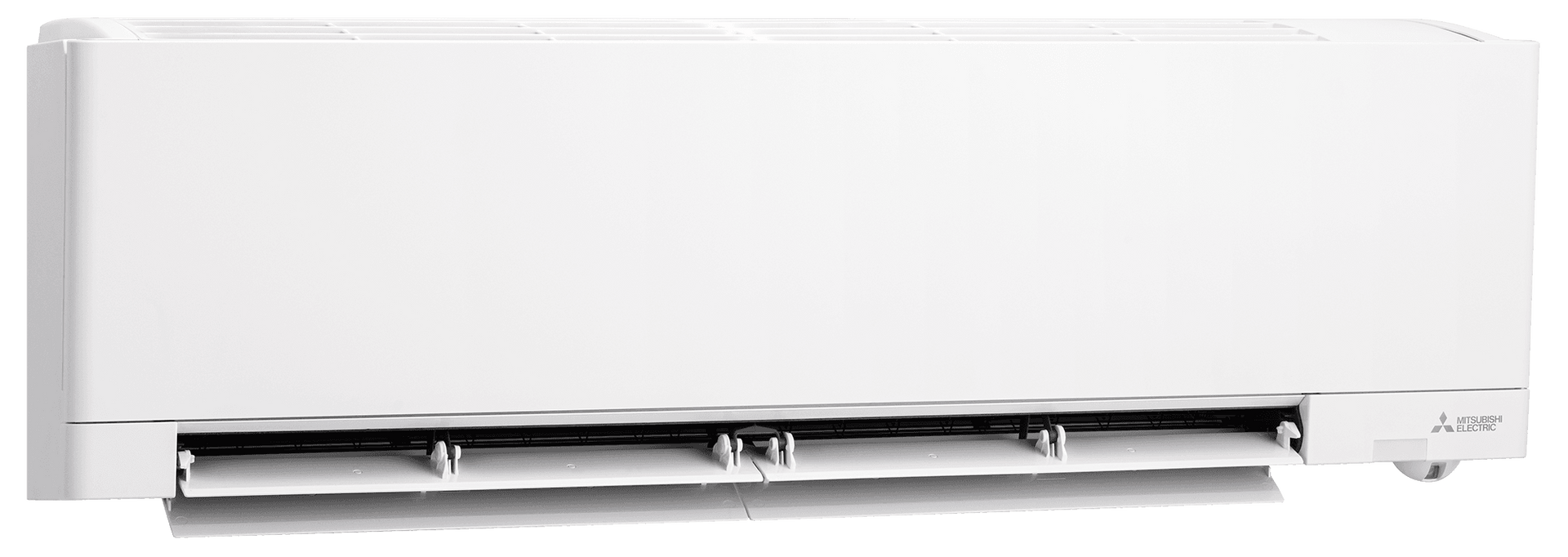

MSZ-FX Wall-mounted Indoor Unit

With a sleek, modern design, the FX deluxe wall-mounted indoor unit is our most advanced indoor unit yet. The Wi-Fi enabled FX provides precise comfort and exceptional energy efficiency to any space, with convenient control options and premium features.

MSZ-FX Deluxe Wall-mounted Indoor Unit

Features

3D i-see Sensor

This advanced sensor scans the room for occupancy, then adjusts temperature and airflow based on user preferences, and saves energy when a room is empty.

Econo Cool

Temporarily adjusts airflow to maintain comfort while using less energy.

Swing Mode

An indoor unit with this capability can move air throughout the room like an oscillating fan.

Powerful Mode

Temporarily drops or raises the set temperature in order to quickly bring your room to your desired temperature.

Energy Star logo, white star and arch over the word "energy" in cursive on black background.

ENERGY STAR

A government-backed symbol that certifies products, buildings, and practices as energy efficient, making it easier to choose products that use less energy without sacrificing quality or comfort.

Specifications

Black check mark on a white background.

Series: M-Series

Black checkmark on a white background.

Type: Wall-mounted

Black check mark on white background.

Model: MSZ-FX

Black check mark on white background.

Capacity range: 6,000 to 24,000 BTU/H

Black checkmark on a white background.

Sound level:  As low as 20 dB(A)

Black check mark on a white background.

SEER2: Up to 35

Black check mark on white background.

HSPF2: Up to 13.3

Black checkmark on white background.

Refrigerant: R454B

Black checkmark on white background.

ENERGY STAR: Yes

Dimensions

The MSZ-FX model has 6 unit options, all with the same dimensions.

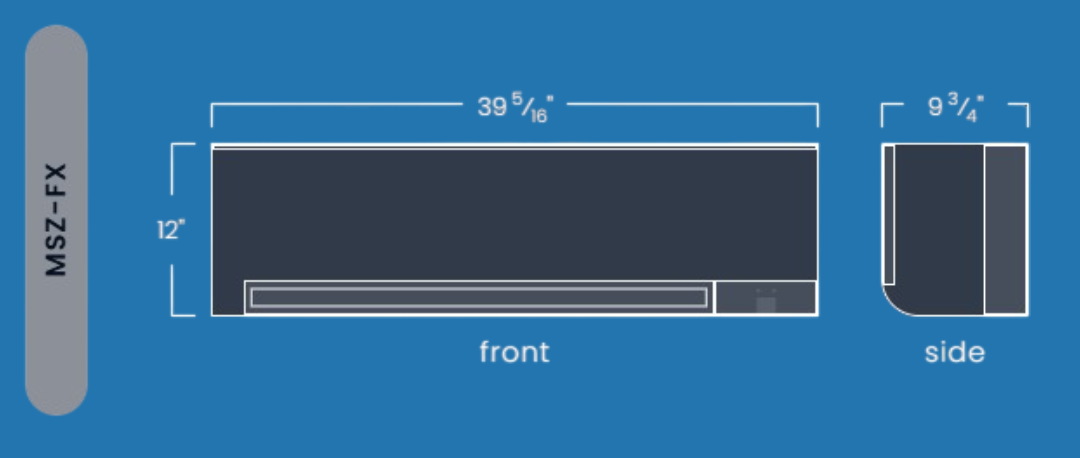

Diagram of a rectangular object with measurements labeled, including front and side views; blue background.
