MSY-GX

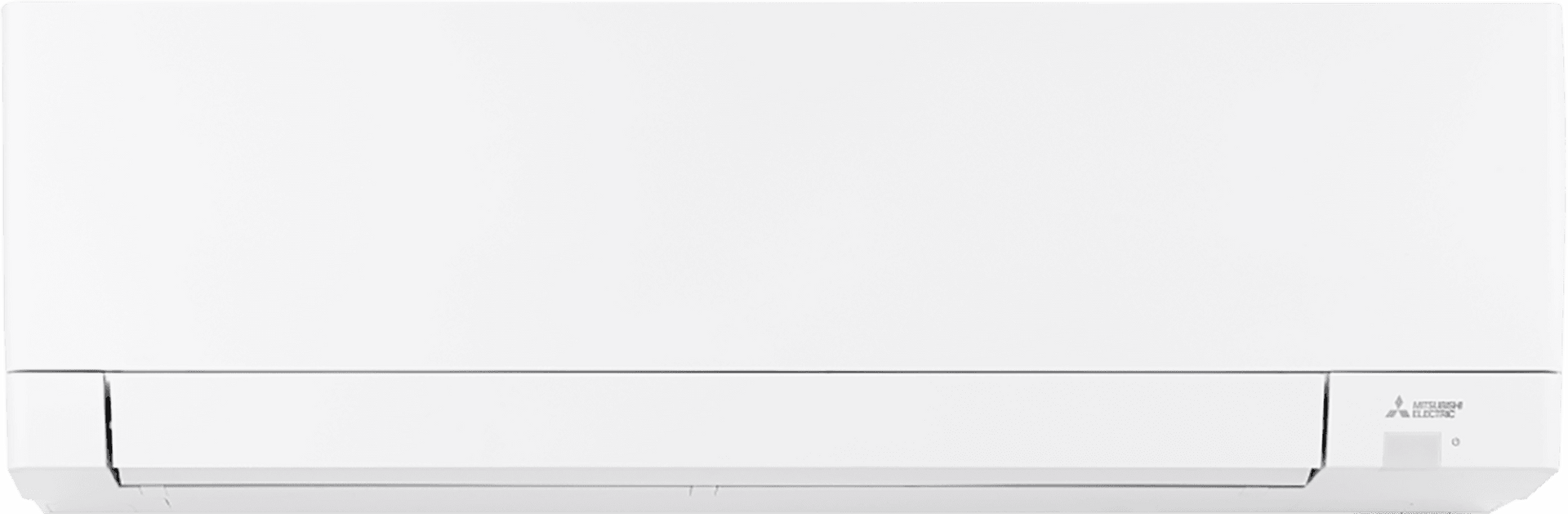

MSY-GX Cooling-only Wall-mounted Indoor Unit

The MSY-GX premier wall-mounted indoor unit combines sleek matte finish design, whisper-quiet performance, and energy-efficient comfort for any home. The unit has built-in Wi-Fi and comes with an array of other advanced features. It is a high-efficiency single-zone cooling-only unit.

MSY-GX Premier Cooling-only Wall-mounted Indoor Unit

Features

Econo Cool

Temporarily adjusts airflow to maintain comfort while using less energy.

Swing Mode

An indoor unit with this capability can move air throughout the room like an oscillating fan.

Energy Star logo with white star and arc on black background.

ENERGY STAR

A government-backed symbol that certifies products, buildings, and practices as energy efficient, making it easier to choose products that use less energy without sacrificing quality or comfort.

Specifications

Black check mark on a white background, indicating a positive selection.

Series: M-Series

Black check mark on a white background.

Type: Wall-mounted

Black check mark on white background.

Model:  MSY-GX

Black checkmark on a white background.

Capacity range:  9,000 to 36,000 BTU/H

Black checkmark on a white background, indicating a positive selection or confirmation.

Sound level:  As low as 19 dB(A)

Black checkmark on a white background.

SEER2:  Up to 28.4

Black check mark on a white background.

Refrigerant:  R454B

Black check mark on a white background.

ENERGY STAR: Yes

Dimensions

The MSY-GX model has 2 size variations across 7 unit options.

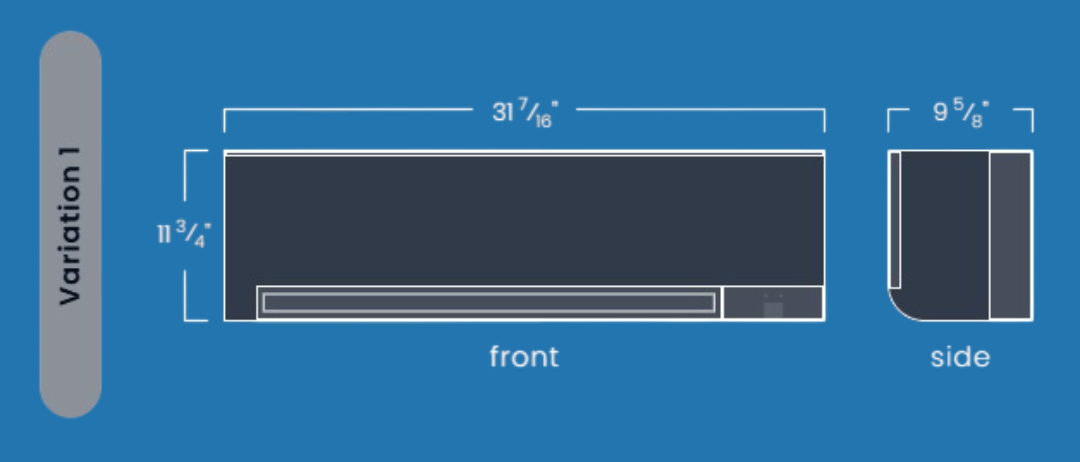

Diagram showing the front and side views of an object, dimensions labeled in inches.

3 units with these dimensions:

  • MSY-GX09NL (9000k BTU/H)
  • MSY-GX12NL (12000k BTU/H)
  • MSY-GX15NL (15000k BTU/H)

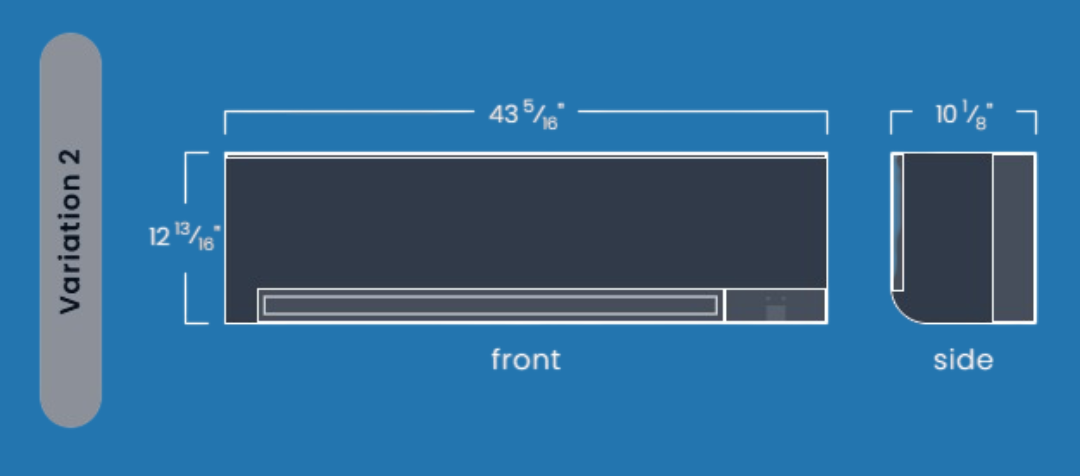

Diagram of a rectangular object with measurements for

4 units with these dimensions:

  • MSY-GX18NL (18000k BTU/H)
  • MSY-GX24NL (24000k BTU/H)
  • MSY-GX30NL (30000k BTU/H)
  • MSY-GX36NL (36000k BTU/H)
