MSZ-HX

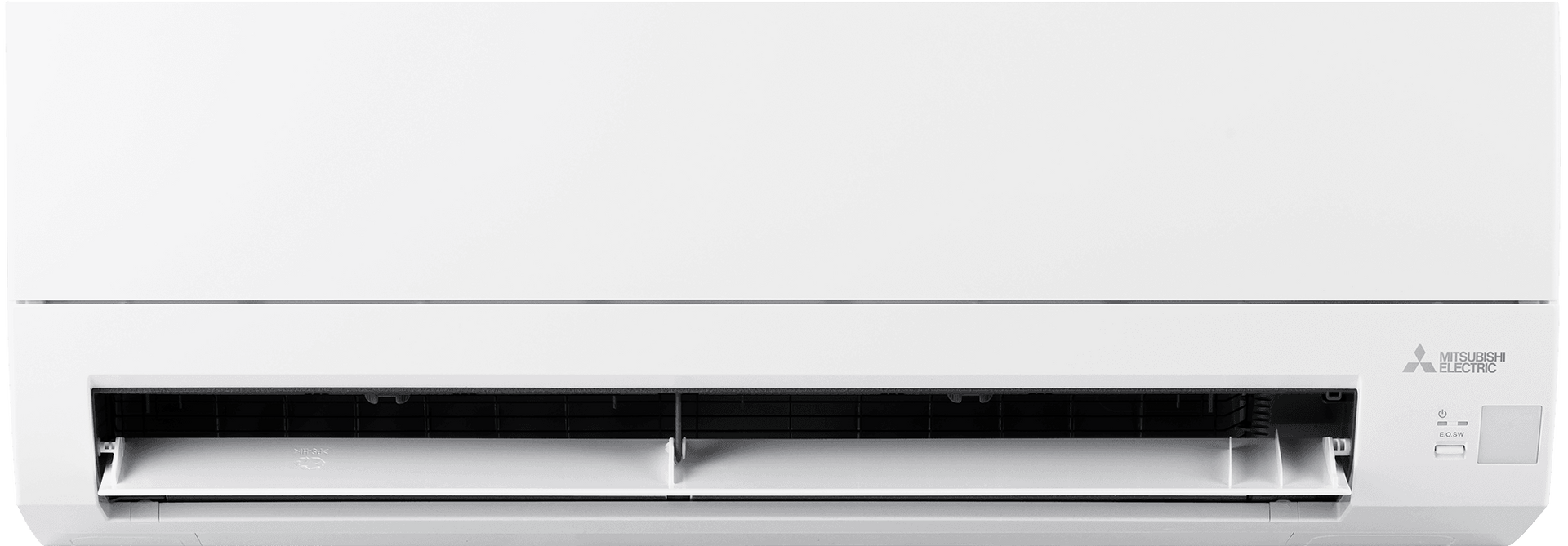

MSZ-HX Wall-mounted Indoor Unit

The HX offers energy-efficient operation and a slim, flat panel design to bring ultimate comfort to any room. This indoor unit is equipped with innovative features to elevate homeowner comfort and pairs with a single-zone outdoor heat pump.

MSZ-HX Wall-mounted Indoor Unit

Features

Econo Cool

Temporarily adjusts airflow to maintain comfort while using less energy.

Swing Mode

An indoor unit with this capability can move air throughout the room like an oscillating fan.

Energy Star logo with white star and arc on black background.

ENERGY STAR

A government-backed symbol that certifies products, buildings, and practices as energy efficient, making it easier to choose products that use less energy without sacrificing quality or comfort.

Specifications

Black check mark on a white background, indicating a positive selection.

Series: M-Series

Black check mark on a white background.

Type: Wall-mounted

Black check mark on white background.

Model:  MSZ-HX

Black checkmark on a white background.

Capacity range:  9,000 to 24,000 BTU/H

Black checkmark on a white background, indicating a positive selection or confirmation.

Sound level:  As low as 22 dB(A)

Black checkmark on a white background.

SEER2:  Up to 20

Black checkmark on white background.

HSPF2: Up to 10

Black check mark on a white background.

Refrigerant:  R454B

Black check mark on a white background.

ENERGY STAR: Yes

Dimensions

The MSZ-HX model has 2 size variations across 4 unit options.

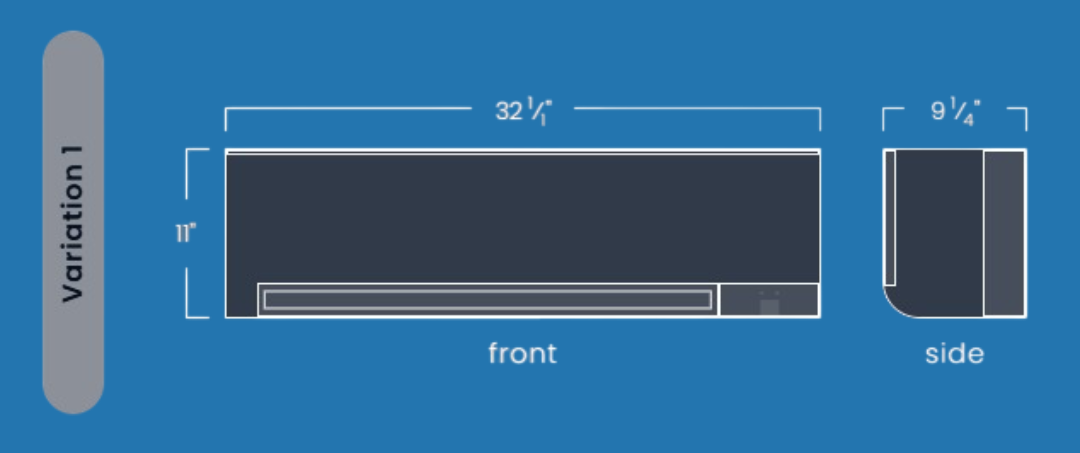

Diagram of a rectangular object showing front and side views with dimensions in inches. It is Variation 1.

2 units with these dimensions:

  • MSZ-HX09NL (9000k BTU/H)
  • MSZ-HX12NL (12000k BTU/H)
Diagram of an air conditioner, dimensions labeled as 35 9/16

2 units with these dimensions:

  • MSZ-HX18NL (18000k BTU/H)
  • MSZ-HX24NL (24000k BTU/H)
