MSZ-WX

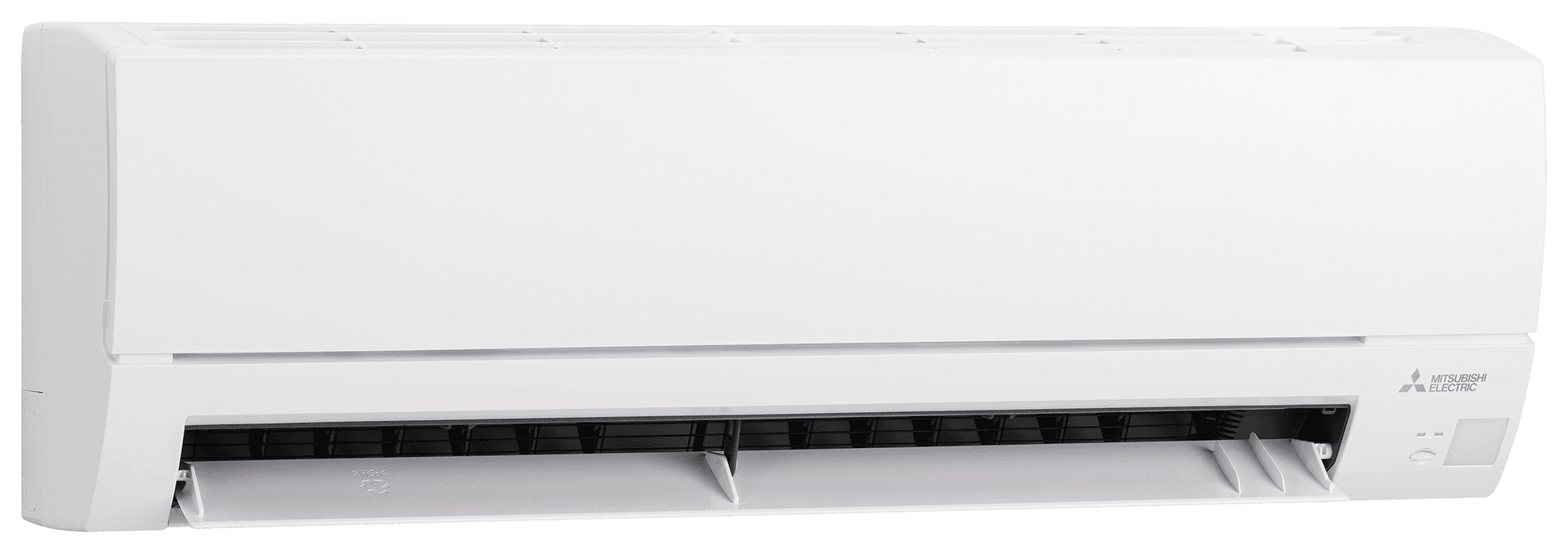

MSZ-WX Wall-mounted Indoor Unit

The WX provides personalized, energy-efficient comfort to any room or zone. Complimentary to a wide variety of décors with its stylish flat panel design, the indoor unit is equipped with customizable settings and advanced features and pairs with a single-zone heat pump outdoor unit.

MSZ-WX Wall-mounted Indoor Unit

Features

Econo Cool

Temporarily adjusts airflow to maintain comfort while using less energy.

Nano Platinum Filter

This filter has a large capture area and incorporates nanometer-sized platinum-ceramic particles and is designed to reduce the presence of certain nonliving particles, while deodorizing the circulating air.

Swing Mode

An indoor unit with this capability can move air throughout the room like an oscillating fan.

Specifications

Black check mark on a white background.

Series: M-Series

Black check mark.

Type: Wall-mounted

Black check mark on a white background.

Model:  MSZ-WX

Black check mark on white background.

Capacity range:  9,000 to 24,000 BTU/H

Black check mark on a white background.

Sound level:  As low as 22 dB(A)

Black check mark on a white background.

SEER2:  Up to 18

Black check mark.

HSPF2:  Up to 8.5

Black checkmark on a white background.

Refrigerant:  R454B

Dimensions

The MSZ-WX model has 2 size variations across 4 unit options.

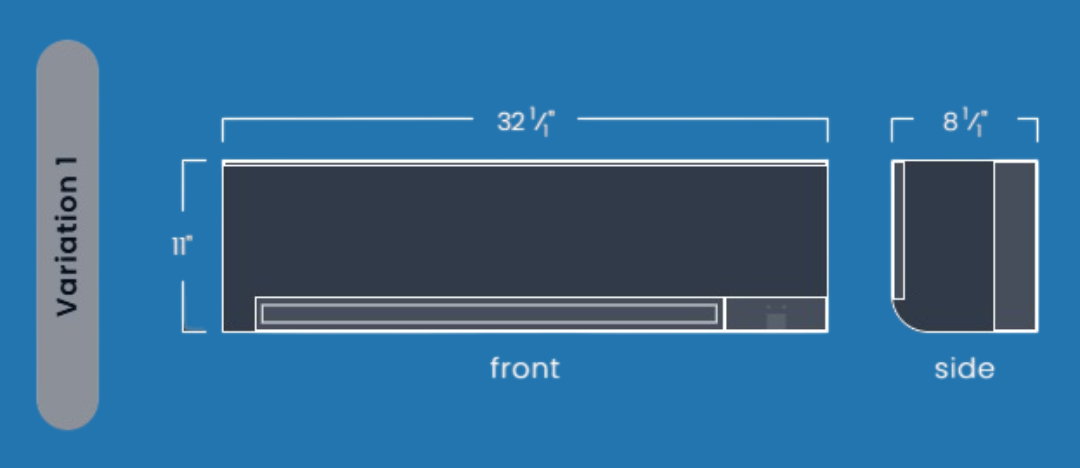

Diagram of an air conditioning unit with dimensions: 32 ¼” wide, 8” high, and 6 ⅝” deep.

3 units with these dimensions:

  • MSZ-WX09NL (9000k BTU/H)
  • MSZ-WX12NL (12000k BTU/H)
  • MSZ-WX18NL (18000k BTU/H)

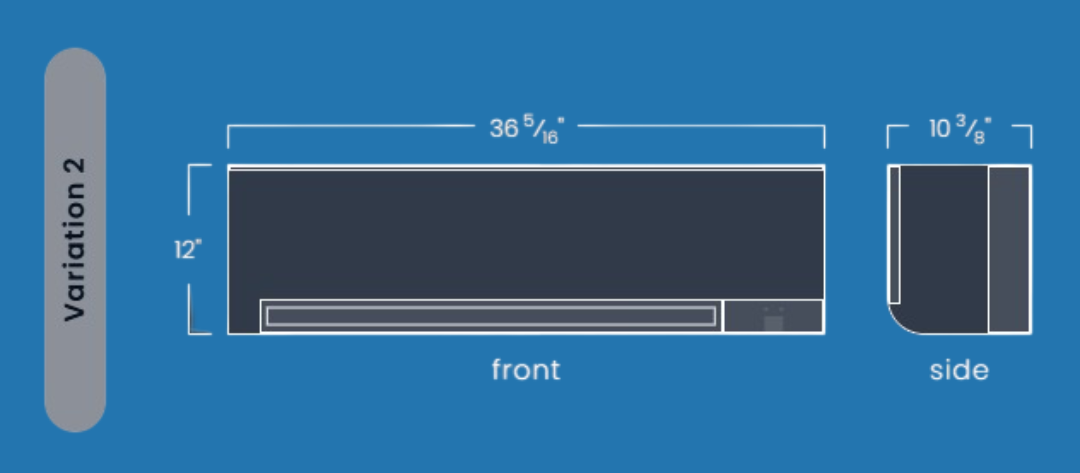

Diagram of a dark box labeled

1 unit with these dimensions:

  • MSZ-WX24NL (24000k BTU/H)
